MIT App Inventor - How to render larger data sets efficiently using RecyclerList Extension - Advanced Guide

In this guide I will show you how to render larger data sets using RecyclerList extension and how to create a custom search bar to filter data. In the specific example as database I used a Google Spreadsheet with 5 columns and 1.200 rows but I have tested it with even bigger databases and worked with no problem.

For those we are not familiar with dynamic components please read first the RecyclerList - Basic guide

The result is ...

Extensions used in this project

Recycler List by Zain Ul Hassan

ListUtils by Zain Ul Hassan to filter data

Enhance extesnion by Kevinkun to create stylish cardviews

TextBox extension by Pura Vida Apps in order to use on textbox change event

ClickZ extension by Aquib Khan to add click event to cardviews and

Image Loader  by Ayoub Mounchid to load images asynchronous

Lets start. Go to http://ai2.appinventor.mit.edu/ and create a new project

Designer part

As you see I added a hidden ListView component - you must do it otherwise RecyclerList extension causes app to crash. This requirement is needed only on AI2 - not in Kodular

Blocks part

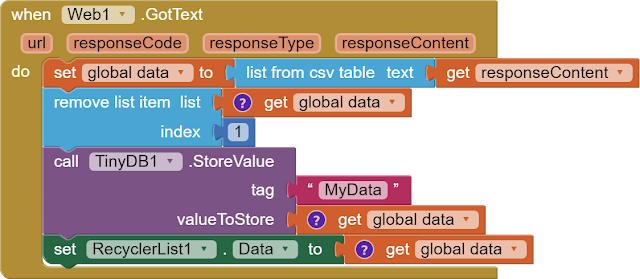

In the specific example once I get data from spreadsheet I save it to tinyDB since I won't need to update data anymore

As you see the whole table is used as data, no need to separate to colums to assign data to different components for example labels. We will use data item and index later on BindView

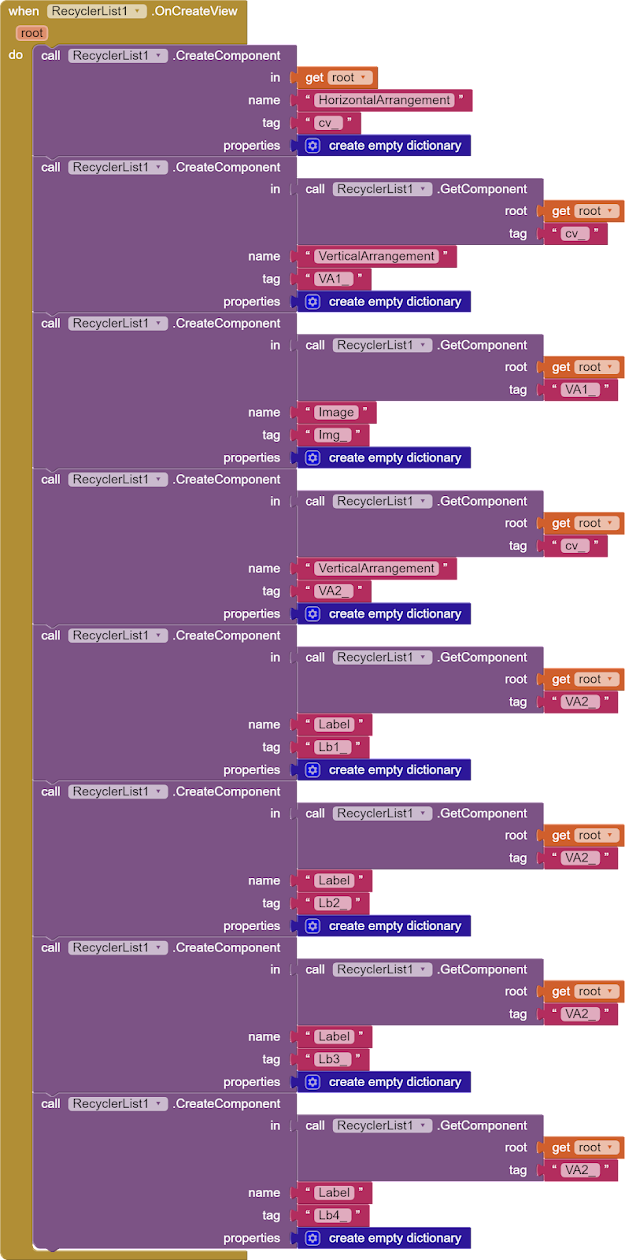

On CreateView we create our layout. For example I create a HorizontalArrangement as a CardView that has two Vertical Arrangements. First one contains an image and second one has 4 labels

On BindView we set unigue id's only to the components that we might need to identify later for example on click events, we set components properties and we assign specific data to specific components

This procedure is used with ListUtils extension. In my example I search data in first column of my table. Of course we can customize the procedure according to our needs

Using on TaifunTextbox.AfterTextChanged block when text is changed then in RecyclerListView we get the filtered data

Using when ClickZ.Clicked when a HorizontalArrangement/CardView is clicked a new page is opened and the specific infos are passed to second screen

Blocks can significantly reduced if we use schema template like we did with dynamic components extension. In that case we only use one block onCreateView and we simply assign values on BindView

You can download test aia from here and test apk from here .
